Fri 2021-Apr-23

JnJ Revenant

Tagged: COVID / MathInTheNews / PharmaAndBiotech / Politics

Today the Advisory Committee on Immunization Practices (ACIP) today recommended restoring use of the JnJ COVID-19 vaccine with warnings, and thrombosis treatment guidelines for clinicians. The CDC & FDA agreed, and lifted the restrictions. This seems to be very much the correct conclusion, albeit one arrived at far too slowly.

The ACIP meeting

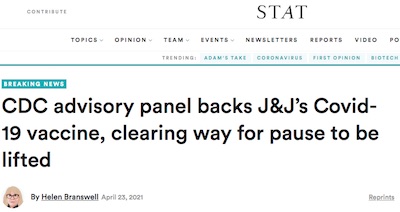

STATNews: ACIP backs JnJ vaccine, with caveats Today the full ACIP met, in a day-long series of talks presenting the risks and benefits of the JnJ vaccine, and the reasonable policy choices that could be made. Helen Branswell of STAT News comes through again with a pretty good summary piece: [1]

  • The committee voted 10-4-1 in favor of lifting the restriction, with 1 abstention. I’m curious about who abstained and why; I can understand disagreement somewhat, but not indifference.
  • Originally there were 6 cases of cerebral venous sinus thrombosis (CVST) with thrombocytopenia (low platelet count). Now, after a data review, there are 15. There are potentially almost 10 more cases that “might” be called in the next few days.
  • The identifying features are a thrombosis, typically in the brain, with a simultaneous low platelet count (thrombocytopenia). This happens approximately never. So an important diagnostic method: if you see a patient with a probable thrombosis and the blood work shows a low platelet count, then it might be one of these weird vaccine-associated thromboses.
  • That’s important because these patients have antibodies to PF4-heparin. PF4 is a protein associated with platelets, and heparin is the drug of choice to treat clots like this. It makes heparin work backward and cause more clots! So clinicians have to know not to use heparin when they see thrombosis with thrombocytopenia. It’s a good outcome that we know this now.
  • People are now worried this could be a class effect of viral vector vaccines, since it was seen in both JnJ and AZ/OX.
    • Of course the Russian Sputnik V vaccine is a viral vector vaccine too. The Gamaleya Center, which developed it, denies there’s any problem. But the Russian data has been so thoroughly compromised we can’t really make anything of that.
    • The Chinese CanSino vaccine is also in this class. CanSino denies any such effect, but did so in an announcement to the Hong Kong stock exchange, which is just a weird way to get medical news out.

Let’s do a little probability here. Just about 6.8 million people have gotten the JnJ vaccine. We now have, worst case, 25 cases of CVST with thrombocytopenia. So that’s a probability per unit time (2 weeks observation after vaccination) of:
\(\begin{align*} d/dt \Pr(\mathrm{thrombosis.death} | \mathrm{vax}) & = (25/\mathrm{fortnight}) / 6.8 \times 10^{+6} \\ & = 3.68 \times 10^{-6}/\mathrm{fortnight} \end{align*}\)

This is our updated baseline rate of CVSTs within 2 weeks of getting JnJ, assuming all of them are associated with the vaccine. As we discussed before, this is notably less than numerous other risks, all extremely relevant to a vaccine-eligible person (with the notable exception of CVST from other non-vaccine causes):

  • COVID-19 death risk in US:
    \(\begin{align*} d/dt \Pr(\mathrm{covid.death} | \mathrm{no.vax}) & = (500,000/\mathrm{yr}) / (328 \times 10^{+6} \cdot 26 \mathrm{fortnight}/\mathrm{yr}) \\ & = 5.86 \times 10^{-5}/\mathrm{fortnight} \end{align*}\)

  • Thrombosis risk in general in the US:
    \(\begin{align*} d/dt \Pr(\mathrm{thrombosis}) & = (300,000/\mathrm{yr} - 600,000/\mathrm{yr}) / (328 \times 10^{+6} \cdot 26 \mathrm{fortnight}/\mathrm{yr}) \\ & = 3.52 \times 10^{-5} - 7.04 \times 10^{-5}/\mathrm{fortnight} \end{align*}\)

  • Specifically risk of CVST type thrombosis from other causes:
    \(\begin{align*} d/dt \Pr(\mathrm{CVST}) & = 15.7 \times 10^{-6}/\mathrm{yr} \cdot 1\mathrm{yr}/26 \mathrm{fortnights} \\ & = 6.04 \times 10^{-7}/\mathrm{fortnight} \end{align*}\)

  • Risk of blood clots from birth control pills:
    \(\begin{align*} d/dt \Pr(\mathrm{clot} | \mathrm{birthcontrol}) & = (0.003 - 0.01)/10 \mathrm{year} \cdot 1 \mathrm{year}/26 \mathrm{fortnights} \\ & = 1.15 \times 10^{-5} - 3.85 \times 10^{-5}/\mathrm{fortnight} \end{align*}\)

  • Anaphylactic shock risk in Pfizer or Moderna vaccines: \(\begin{align*} \Pr(\mathrm{anaphylaxis} | \mathrm{mRNA}) & = 21 / 1,893,360 \\ & = 1.1 \times 10^{-5} \end{align*}\)

Conclusion: Even if all these terrible CVST with thrombocytopenia cases are attributed to the JnJ vaccine, you’re still saving lives compared to the other risks patients face, especially COVID-19 itself. So resuming its use seems eminently sensible.

A quick trawl through the slides presented to the ACIP

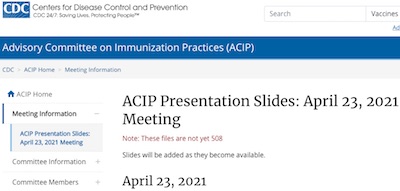

ACIP: slides for talks about JnJ risk model and recommendations The ACIP put all the slides used in the discussion up for public view, along with a video feed of the meeting. [2]

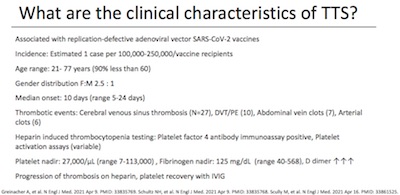

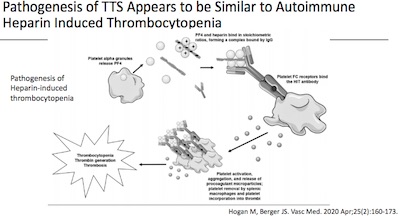

ACIP: characteristics of JnJ patients with thromboses ACIP: TTS mechanism similar to autoimmune heparin induced thrombocytopenia Some characteristics of the people who had the thromboses:

  • They estimate a frequency of 1 case per 100,000 – 250,000 vaccinees. This is either comparable with our result above (1/250,000) or about 4x larger (1/100,000). I don’t know why theh have a range like that; somebody may have been doing Bayesian posterior Beta function error bars and didn’t report it? That would be an interesting person to listen to!
  • 90% of victims are under 60, and the female/male ratio is about 2.5 to 1. So mostly younger women.
  • They have PF4 antibody assays come back positive, so they all have some oddball antibodies running around messing with platelets and clotting. That’s nice to know, since it means we have some idea how it works.
  • The mechanism looks startlingly similar to autoimmune heparin induced thrombocytopenia, right down to the PF4 antibodies.
  • Major point: It’s crucial for clinicians to treat these patients with non-heparin anti-clotting drugs.

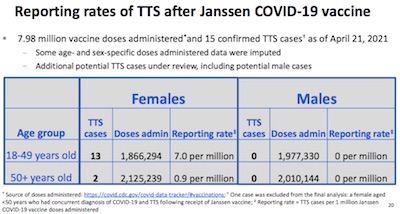

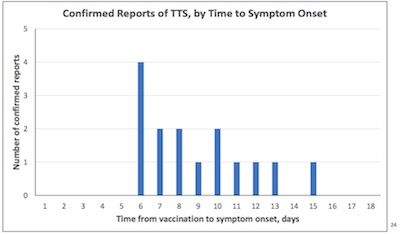

ACIP: TTS risk rates broken down by age and sex ACIP: TTS time of onset The reporting rates broken down by age and sex really point the finger toward young women being the at-risk group here. The symptoms also seem to come on within 6-15 days, so the monitoring period is fairly short.

The speaker from JnJ did some similar risk comparisons to the ones we did above. The risk of TTS after their vaccine is about 1.9/million, using their numbers. The mRNA vaccines have about 1.2/million chance of anaphylaxis, the H1N1 flu vaccine might cause Guillan-Barré syndrom about 3.4/million, and so on. So the risks are already something that we find accceptable in other, similar medical situations. They even did the comparison with birth control pills that we did above! (No, I don’t think they read this crummy little blog, but it would be funny if they did.)

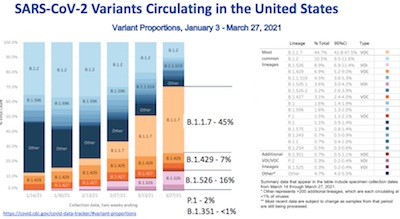

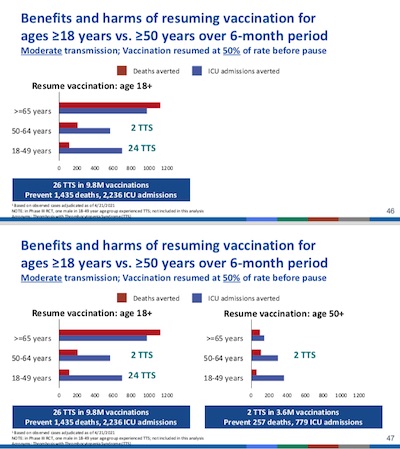

ACIP: variants in the US ACIP: COVID-19 benefits and TTS risks The last speaker, Sara Oliver, had the best presentation (well worth your time). They went on for a bit about their “Evidence to Recommendations framework”, which apparently is a semi-formal method for making policy recommendations based on the evidence of adverse events. Seems like a good thing to have, given that we want to minimize overall risk from both thromboses and from COVID-19 itself.

One risk for the US is that the variants from around the world are starting to show up in the US. This is a consequence that will keep coming back, until we get pretty much the entire world’s population vaccinated and suppress SARS-CoV-2. A similar thing happened in South Africa: within 8 weeks of its initial appearance, B.1.351 became almost the only variant seen!

They looked at case rates, hospitalization rates, and mortality rates broken down by age, sex and race. So it looks like they fairly thoroughly assessed the risks of not getting vaccinated along with the risks of TTS, which is the proper thing to have done.

They looked at scenarios in which the mRNA vaccines continue, but the JnJ is either not resumed, resumed only for age 50+ adults (with 50% of the former vaccination rate or 100% of the former vaccination rate, or resumed for 18+ adults (with the same 2 subscenarios for vaccination rates).

They used a compartmental model (presumably a modified SIR model) with strata for ages, essential workers, underlying conditions. It was fitted to data through the present. The various scenarios in the models told them the time to complete vaccination in the US, depending on which vaccines are available and are administered at which rates (74 - 88 days).

Generally speaking, these are just mathematical ways of trading off the risks (number of vaccine-related TTS cases) vs benefits (prevention of COVID-19 cases, hospitalizations, and deaths). Though they regrettably didn’t show any beautiful equations, I like the thoroughness and clarity of the risk/benefit modeling.

They also commendably addressed equity, noting that many hard-to-reach groups are really only reachable with a single-shot vaccine and that JnJ is really our only option there.

This presentation really reassured me that the risk/benefit assessment was well done.

The regulatory agencies’ reaction

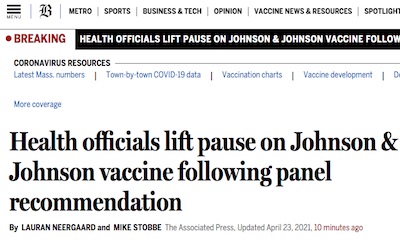

Boston Globe: FDA, CDC lift restrictions on JnJ vaccine The FDA and the CDC are jointly responsible for the pause. They don’t have to listen to the ACIP recommendations, but they usually do. Not to do so here would be egregiously bad.

So we were gratified to read in the venerable Globe [3] that later in the evening the regulatory agencies did just that, ending the 11 day pause. Women 18-49 are now to be advised of the thrombosis risk, and told to go to an ER if they have them. Emergency medicine folk have been told not to use heparin for thromboses if the patient has recently been vaccinated, or has a low platelet count. (I would have gone for vectoring women 18-49 to an mRNA vaccine, but this one is still probably a very good strategy.)

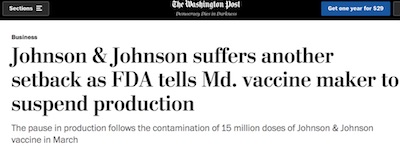

Washington Post: JnJ manufacturing woes at Emergent plant So that all looks pretty good. Now if only JnJ can get their manufacturing act straightened out… [4] because as Abba Eban remarked on another subject, we “never miss an opportunity to miss an opportunity” to do things right with COVID-19 vaccines. (Though that’s good snark, it’s slightly too pessimistic here. We did amazingly well at making vaccines with unheard-of-efficacy at record speed, in spite of the US lacking a functional federal government at the time, so it was an international effort. The distribution, though, has been more problematic.)

The weekend assessment

This seems like more or less the correct decision: the vaccine benefits outweigh the risks, so we save more lives by using it. Adding a warning for women 18-49 about symptoms of thrombosis is entirely appropriate, or even steering them to an mRNA vaccine, if available. Warning clinicians not to use heparin, the therapy of choice for thrombosis, if the patient was recently JnJ vaccinated or shows thrombocytopenia, will save more lives as well.

The bug in the salad here, though, was speed: it took way to long to reach this conclusion. One could have looked at the frequency of thromboses last week and concluded more or less the same thing, adding the instructions about heparin as they were discovered. We lost a week of potential vaccinations, and stimulated still more supertitious fear among the ignorant.

Self inflicted wounds are the slowest to heal.

Notes & References

1: H Branswell, “CDC advisory panel backs J&J’s Covid-19 vaccine, clearing way for pause to be lifted”, STAT News, 2021-Apr-23.

2: J Romero, A Cohn, B Bell, M Streiff, T Shimabukuro, G Lee, & S Oliver, “ACIP Presentation Slides: April 23, 2021 Meeting”, Advisory Committee on Immunization Practices, 2021-Apr-23. The meeting agenda is here. There was also a video livestream here, but it seems to be gone as of the evening of the 23rd. They tend to show up eventually on the CDC’s YouTube channel, though.

3: L Neergaard & M Stobbe, “Health officials lift pause on Johnson & Johnson vaccine following panel recommendation”, Boston Globe, 2021-Apr-23.

4: C Rowland, “Johnson & Johnson suffers another setback as FDA tells Md. vaccine maker to suspend production”, Washington Post, 2021-Apr-19.
